Quality Industrial Equipment 1024*768 XGA Display Tianma NL10276BC30-39 15 Inch XGA IPS a-Si TFT-LCD Module with LVDS Interface factory

Industrial Equipment 1024*768 XGA Display Tianma NL10276BC30-39 15 Inch XGA IPS a-Si TFT-LCD Module with LVDS Interface

Brand Name

NEC

Country Of Origin

Japan

Unit Price

$290/pieces 1-99 pieces

Product Details

Highlight:

xga tft lcd display

xga industrial tft display

tianma tft lcd display

Type: TFT

Display Size: 15inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 1024*768

Module Outsize(Mm): 326.5(H)x253.5(V) X12.2(D) Mm

Viewing Angle: 88/88/88/88 (Typ.)(CR 10)

Brightness: 350cd/m2

Interface: LVDS

Touch Panel: Withtout

Application: Industrial Equipment

MPQ: 10pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	NL10276BC30-39	Panel Brand	NEC
Size (inch )	15.0inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	326.5(H)×253.5(V) ×12.2(D) mm	Display Mode	UA-SFT, Normally Black, Transmissive
LCD Active area(mm)	304.128(W)×228.096(H) mm	Response Time	14/11 (Typ.)(Tr/Td)
Display Colors	16.7M 72% NTSC	Light Source	WLED [6 strings] , 70K hours , W/O Driver
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	350 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)	Used for	Industrial
Frame Ratio	60Hz	Enviroment	Storage Temp.: -20 ~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -20 ~ 70°C
LCM Interface Type	LVDS (1 ch, 8-bit) , 20 pins Connector	FPC connector	HRS, DF14H-20P-1.25H, Pitch 1.25mm

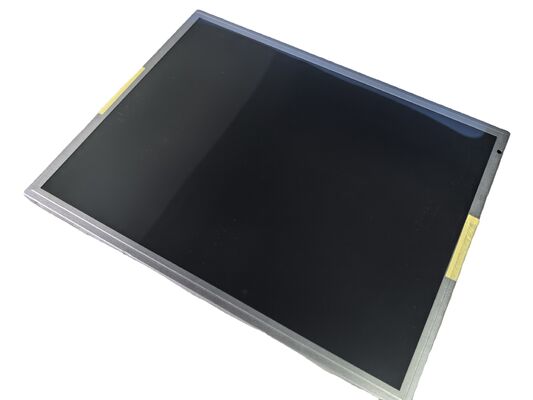

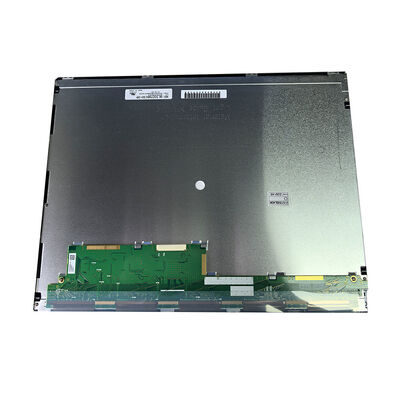

Details Images

Industrial Equipment 1024*768 XGA Display Tianma NL10276BC30-39 15 Inch XGA IPS a-Si TFT-LCD Module with LVDS Interface
