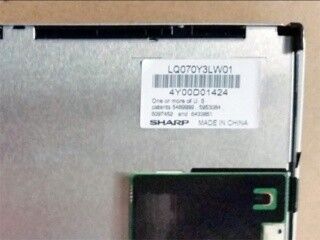

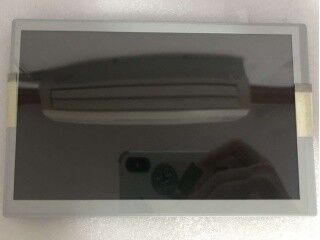

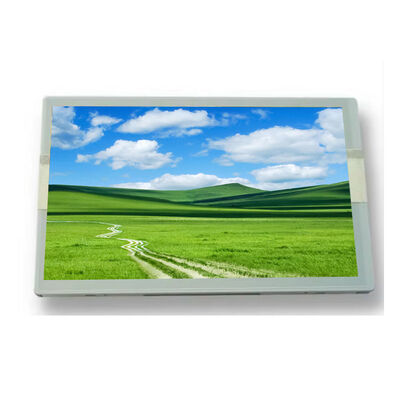

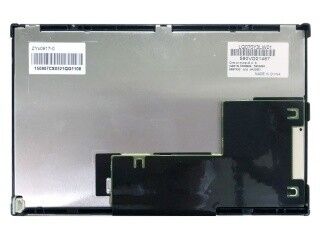

ASV WVGA colour Industrial TFT Display WLED Backlight Sharp 7 Inch

Name: ASV WVGA colour Industrial TFT Display WLED Backlight Sharp 7 Inch
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: LQ070Y3LW01
Price: 50.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ070Y3LW01
MOQ:	1
Price:	$192/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

7inch

Supplier Type:

Original Brand

Brand:

Sharp

Resolution:

800*480

Module Outsize(mm):

163.2W*104H *9.5Dmm

Viewing Angle:

85/85/85/85 (Typ.)(CR 10)

Brightness:

360cd/m2

Interface:

LVDS

Touch Screen:

Without

Application:

Industrial

MPQ:

36pcs

Warranty:

12 Months

Highlight:

ASV Industrial TFT Display

WLED Backlight Industrial TFT Display

WLED Backlight colour tft display

Product Description

LQ070Y3LW01 Sharp 7 inch 800×480 WVGA TFT-LCD Display Module

High-performance 7-inch TFT-LCD display module with WVGA resolution, designed for industrial applications requiring reliable visual performance in wide temperature environments.

Key Features

800×480 WVGA resolution with 133 PPI for clear imagery
360 cd/m² brightness for excellent visibility
ASV technology with 85/85/85/85 viewing angles
LVDS interface with 20-pin connector for reliable data transmission
800:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
262K/16.2M color support
Wide operating temperature range: -10°C to 70°C

Technical Specifications

Panel Model	LQ070Y3LW01	Panel Brand	Sharp
Size	7 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	800×480 (WVGA) 133PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	163.2 × 104 × 9.5 mm (H×V×D)	Display Mode	ASV, Normally Black, Transmissive
Active Area	152.4 × 91.44 mm	Response Time	35 ms (Typ.)
Display Colors	262K/16.2M	Light Source	7S2P WLED, 50K hours
Viewing Angle	85/85/85/85 (CR≥10)	Touch Screen	Without
Brightness	360 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	800:1 (Typ.)	Application	Industrial
Frame Rate	60Hz	Storage Temperature	-25°C to 70°C
Interface Type	LVDS (1 ch, 8-bit)	Operating Temperature	-10°C to 70°C
FPC Connector	HRS, DF14H-20P-1.25H(56), Pitch 1.25mm

Applications

Industrial equipment and machinery
Automation equipment displays
CNC machine displays
VOIP phones
Medical equipment
Industrial Control Display

Customization Options

This display module can be equipped with an HDMI driver board for easier customer debugging and evaluation, as well as for direct use in your products.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
