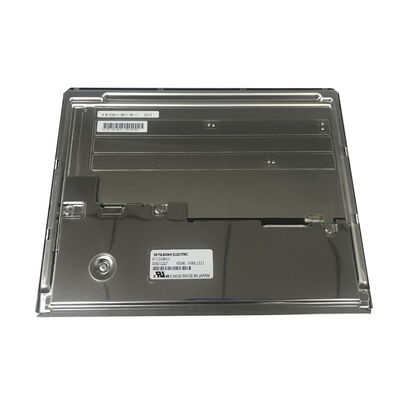

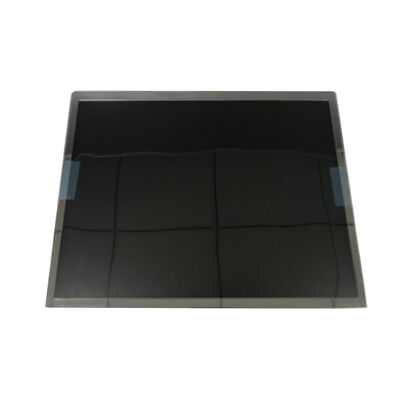

Mitsubishi 10.4 Inch 1024×768 XGA TFT-LCD Display Module with LVDS 20 Pins Interface for Industrial Applications

Name: Mitsubishi 10.4 Inch 1024×768 XGA TFT-LCD Display Module with LVDS 20 Pins Interface for Industrial Applications
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: AT104XH11
Price: 50.00 USD
Availability: InStock

Brand Name:	Mitsubishi
Model Number:	AT104XH11
MOQ:	1
Price:	$425 for 1-99pcs
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

10.4 Inch

Brand:

Mitsubishi

Supplier Type:

Original Brand

Pixel Format:

RGB Vertical Stripe

Treatment:

Antiglare, Hard Coating (3H)

Brightness:

1300 Cd/m² (Typ.)

Contrast Ratio:

700:1 (Typ.) (TM)

Response Time:

4/12 (Typ.)(Tr/Td)

Operating Mode:

TN, Normally White, Transmissive

Touch Panel:

Without

Power Supply:

3.3V (Typ.)

Light Source:

WLED , 100K Hours , W/O Driver

Interface Type:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Environment:

Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 M/s²)

Applications:

Industry Rugged Display, Industrial,Outdoor High Brightness

Warranty:

12 Months

Packaging Details:

20pcs/Box

Highlight:

Rugged transparent tft display

1024x768 transparent tft display

AT104XH11

Product Description

AT104XH11 10.4" Industrial Display Module

High-performance 10.4-inch TFT-LCD display panel with 1024×768 XGA resolution, designed for demanding industrial applications requiring reliable visual performance in wide temperature environments.

Product Status: Mass production started in Q4 2015. This model has been discontinued. We recommend open mold customization as a complete replacement solution. Please contact us for ordering information.

Key Features

1024×768 XGA resolution with 123 PPI for clear, detailed imagery
600 cd/m² high brightness display for excellent visibility
TN technology with 80/80/65/65 viewing angles
LVDS interface with 20-pin connector for reliable data transmission
700:1 contrast ratio for superior image quality
WLED backlight with 100,000 hours lifespan
262K/16.7M color support with 40% NTSC color gamut
Wide operating temperature range: -30°C to 80°C

Technical Specifications

Brand	Mitsubishi	Model P/N	AT104XH11
Diagonal Size	10.4"	Panel Type	a-Si TFT-LCD.LCM
Resolution	1024(RGB)×768, XGA 123PPI	Pixel Format	RGB Vertical stripe
Active Area	210.4(W)×157.8(H) mm	Bezel Opening	215.4(W)×161.8(H) mm
Outline Dimensions	230.2(H)×180.2(W)×11.5(D) mm	Surface Treatment	Antiglare, Hard coating (3H)
Luminance	1300 cd/m² (Typ.)	Contrast Ratio	700:1 (Typ.)
View Direction	6 o'clock	Response Time	4/12 ms (Typ.)
Viewing Angle	80/80/80/80 (Typ.)	Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.7M 49% NTSC	Light Source	WLED, 100K hours
Weight	610g (Typ.)	Application	Industrial, Rugged Industry, Outdoor High Brightness
Frame Rate	60Hz	Power Supply	3.3V (Typ)
Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector	Environment	Operating Temperature: -40°C to 85°C; Storage Temperature: -40°C to 85°C; Vibration Level: 6.8G (66.64 m/s²)

Applications

Industrial equipment and machinery Healthcare medical devices Outdoor & rugged displays Elevator Display Security Monitor Display Automation Equipment Display CNC Machine Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
