Sharp 119PPI RGB Industrial TFT Display LCD Screen Module 60Hz
Sharp 119PPI RGB Industrial TFT Display LCD Screen Module 60Hz
Brand Name
Mitsubishi
Country Of Origin
China
Unit Price
$100/pieces 1-99 pieces
Product Details
Highlight:
Sharp Industrial TFT Display
,60Hz Industrial TFT Display
,119PPI tft lcd screen module
Type:
TFT
Display Size:
8.4inch
Supplier Type:
Original Brand
Panel Type:
A-Si TFT-LCD, LCM
Resolution:
800x600
Module Outsize(Mm):
199.5(H)x149(V) X12(D) Mm
Viewing Angle:
80/80/80/60 (Typ.)(CR 10)
Brightness:
600cd/m2
Interface:
LVDS
Touch Panel:
Withtout
Application:
Industrial Equipment
Voltage Supply:
3.3V (Typ.)
Refresh Rate:
60Hz
Product Description
Detailed Specifications And Features

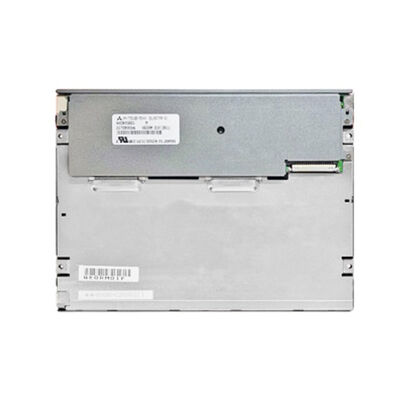

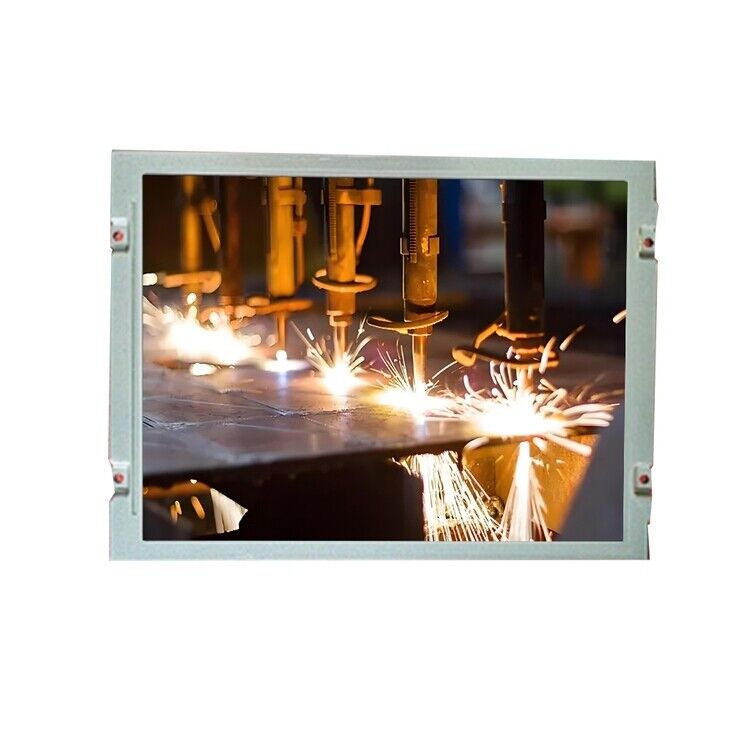

AA084SB01 Original Sharp 8.4-inch SVGA Display Module
High-quality 8.4-inch TFT-LCD display module with 800*600 SVGA resolution, 119 PPI density, and LVDS interface featuring 20-pin connector.
Product Overview
The AA084SB01 is an 8.4-inch diagonal a-Si TFT-LCD display module manufactured by Sharp. This industrial-grade display features SVGA resolution and LVDS interface, making it suitable for various industrial applications requiring reliable performance and clear visibility.
Key Features
- High brightness: 600 cd/m² for clear visibility in various lighting conditions
- Wide operating temperature range: -30°C to 80°C
- LVDS interface with 20-pin connector for reliable signal transmission
- Long-life WLED backlight with 100,000-hour lifespan
- TN display technology with normally white, transmissive mode
Technical Specifications
| Panel Model | AA084SB01 |
| Panel Brand | Sharp |
| Size | 8.4 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)*600, SVGA, 119 PPI |
| Pixel Format | RGB Vertical Stripe |
| Module Dimensions | 199.5(W) * 149(H) * 12(D) mm |
| Active Area | 170.4(W) * 127.8(H) mm |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 4/12 ms (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M, 40% NTSC |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) |
| Frame Rate | 60 Hz |
| Light Source | 2 strings WLED, 100K hours |
| Power Supply | 3.3V (Typ.) |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| FPC Connector | I-pex, 20186-020E-11F, Pitch 1.25mm |
| Touch Screen | Without |
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -30°C to 80°C |
| Application | Industrial |
Why Choose Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive industry experience and superior supply chain resources, we deliver fast, reliable service and first-tier quality products to meet your display requirements.
