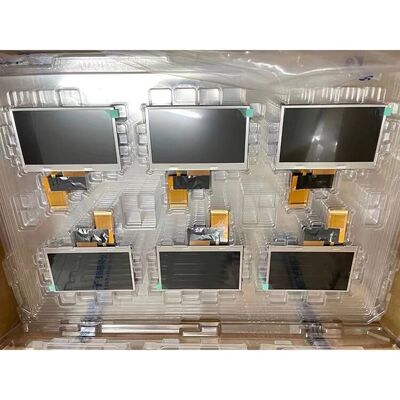

Tianma 4.3" WQVGA TFT-LCD Display Module with 480x272 Resolution and Parallel RGB 40 pins FPC Signal
480x272 7 inch tft display
,FPC 7 inch tft display
,TM043NDH02-40
4.3-inch WQVGA TFT-LCD module with 480×272 resolution, 128 PPI density, and parallel RGB interface. This industrial-grade display offers reliable performance for various embedded applications.
High-performance 4.3-inch TFT-LCD display module engineered for demanding industrial applications requiring reliable operation across wide temperature ranges.
- 480×272 WQVGA resolution with 128 PPI for clear display quality
- 400 cd/m² brightness for good visibility in various lighting conditions
- a-Si TFT-LCD technology with LCM construction
- Parallel RGB interface with 40-pin FPC connector for reliable data transmission
- 900:1 contrast ratio for superior image quality
- WLED backlight with 30,000 hours lifespan
- 16.7M color support with 50% NTSC color gamut
- Wide operating temperature range: -20°C to 70°C
- Extended storage temperature range: -30°C to 80°C
- Touchscreen not included (can be added as optional)
| Brand | TIANMA |
| Model P/N | TM043NDH02-40 |
| Diagonal Size | 4.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×272, WQVGA 128PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 95.04(W) × 53.856(H) mm |
| Bezel Opening | 96.7(W) × 55.48(H) mm |
| Outline Size | 105.5(W) × 67.2(H) × 3.2(D) mm |
| Surface Treatment | Antiglare |
| Luminance | 400 cd/m² (Typical) |
| Contrast Ratio | 900:1 (Typical) |
| Viewing Angle | 80/80/80/60 (Typical) |
| Response Time | 20 ms (Typical) |
| Display Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M, 50% NTSC |
| Backlight | 5S2P WLED, 30K hours, No Driver |
| Mass | 44.4g (Typical) |
| Touchscreen | Without |
| Voltage Supply | 3.3V (Typical) |
| Signal Type | Parallel RGB (1 channel, 8-bit), 40 pins FPC |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
- Industrial equipment and machinery
- CNC machine displays
- Medical equipment
- EV Charger Display
- Industrial Control Display
- Outdoor high brightness applications
- Handheld devices, PMP, MP4
- Portable navigation systems
- Education devices
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare).
This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
Touchscreen integration solutions available upon request.
