23.6 Inch 1280x1280 LVDS Round LCD Screen TFT Display Module DV236FBM-N00

Name: 23.6 Inch 1280x1280 LVDS Round LCD Screen TFT Display Module DV236FBM-N00
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: DV236FBM-N00
Price: 50.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV236FBM-N00
MOQ:	1
Price:	$870/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

DV236FBM-N00 Circle MDL_fi...ec.pdf

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

23.6inch

Supplier Type:

Original Brand

Resolution:

1280(RGB) X1280 54PPI

Module Outsize(mm):

657 X 657 X 29.15 Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR 10)

Support Color:

16.7M 72% NTSC

Brightness:

1500cd/m2

Contrast Ratio:

1000:1 (Typ.) (TM)

Lamp Type:

WLED , 50K Hours , With LED Driver

Interface:

LVDS (2 Ch, 8-bit) , 30 Pins Connector

Power Supply:

12V (Typ.)

Touch Screen:

Without

Application:

Industrial, Round Display, Digital Signage

Warranty:

12 Months

Highlight:

1280x1280 round lcd screen

LVDS round lcd screen

23.6 Inch round tft display

Product Description

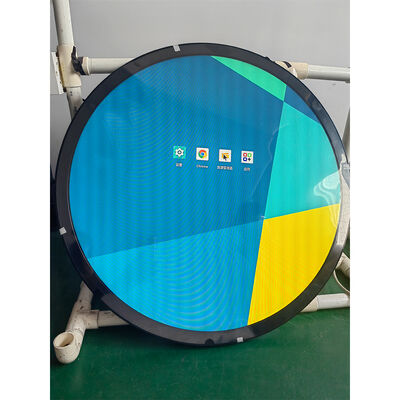

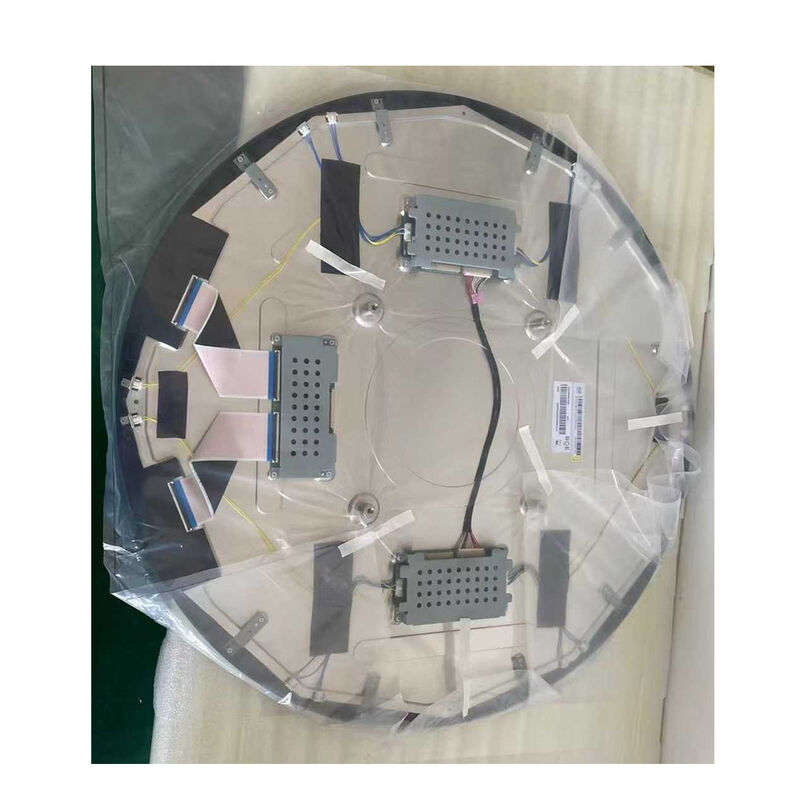

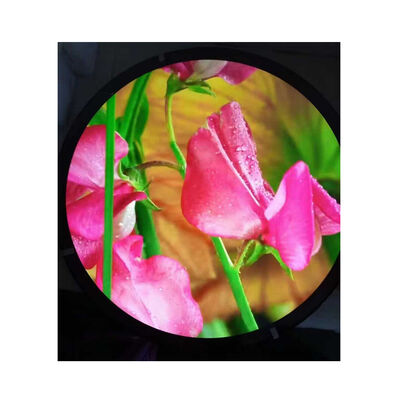

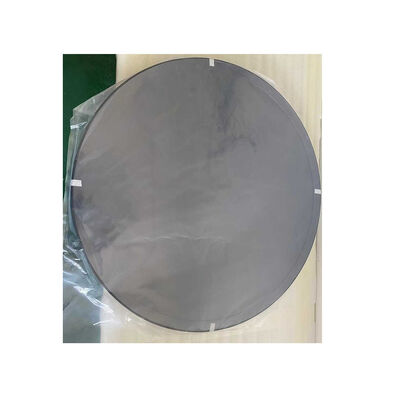

DV236FBM-N00 BOE Original 23.6 Inch 1280x1280 Round LCD Display Module with LVDS Interface for Digital Signage

High-performance 23.6-inch TFT-LCD display module with 1280×1280 resolution, designed for demanding industrial applications requiring reliable visual performance in various environmental conditions. Mass production for this model started in Q2, 2022.

Key Features

1280×1280 resolution with 54 PPI for clear, detailed imagery
1500 cd/m² high brightness display for excellent visibility
ADS technology with 89/89/89/89 viewing angles
LVDS interface with 30-pin connector for reliable data transmission
1000:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan
16.7M color support with 72% NTSC color gamut
Wide operating temperature range: -0°C to 50°C
Round display format for specialized applications

Technical Specifications

Panel Model	DV236FBM-N00	Panel Brand	BOE
Size	23.6 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1280, 54PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	657(W)×657(H)×29.15(D) mm	Display Mode	ADS, Normally Black, Transmissive
Active Area	599.424(W)×599.424(H) mm	Response Time	14ms (Typ.)(Tr+Td)
Display Colors	16.7M, 72% NTSC	Light Source	WLED, 50K hours, With LED Driver
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	1500 cd/m² (Typ.)	Power Supply	12V (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)	Frame Rate	60Hz
Interface Type	LVDS (2 ch, 8-bit), 30 pins Connector	FPC Connector	UJU, IS100-L30O-C23, Pitch 1.0mm
Storage Temperature	-20°C to 60°C	Operating Temperature	-0°C to 50°C
Primary Applications	Industrial, Digital Signage, Round Display

Applications

Commercial round display
Digital signage
Outdoor displays
Elevator Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
