| Brand Name: | WANSHUJIE |
| Model Number: | SJ014LQRQHOIN002-C002B |
| MOQ: | 100pcs |
| Price: | $2/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union, |

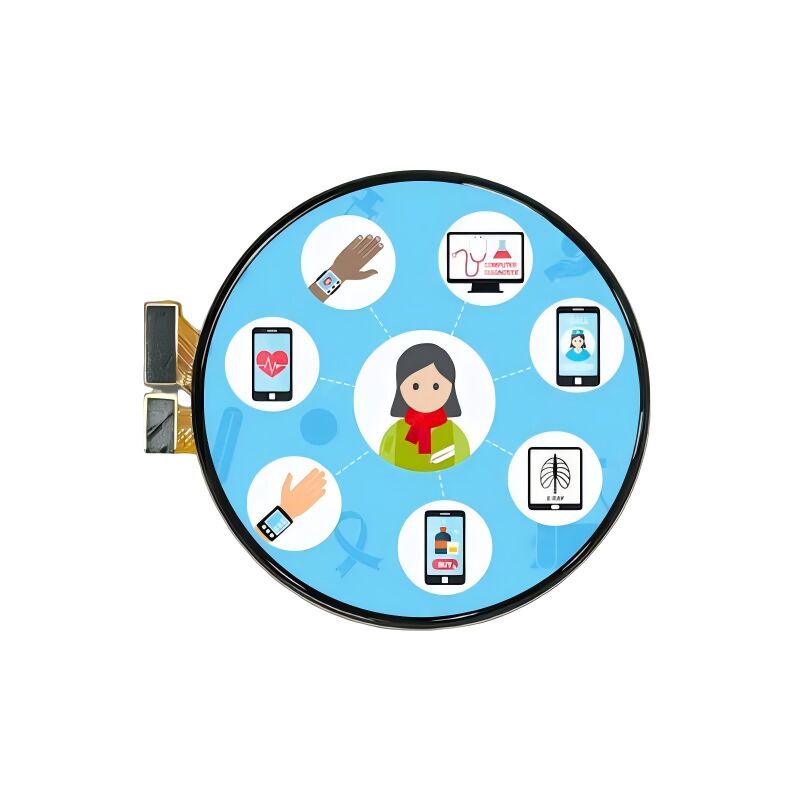

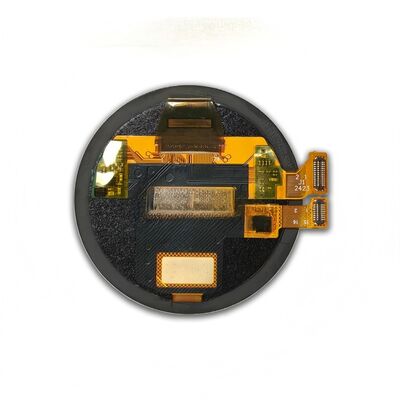

1. Product name: 1.4 inch LTPS Round AMOLED with MIPI Interface Touch Display
2. Part No.: SJ014LQRQHOIN002-C002B
3. Size.: 1.4 inch
4. With touch panel or not: Yes
5. Touch type: Capacitive Touch
6. Display type: AMOLED
7. Display colors: --
8. Color gamut: --
9. Response time: --
10. Resolution (pixels): 454x454
11. Pixel pitch: 0.078(H)*0.078(V)
12. Viewing direction: Free V.A
13. Driver IC: CH13613
14. Overall size: 44.30*44.30*2.46mm
15. Viewing area: 35.81*35.81mm
16. Active area: 35.41*35.41mm
17. Luminance: 600cd/m²
18. Contrast: --
19. Interface type: MIPI
20. Pin NO.: 24
21. Pin pitch: --
22. Touch interface: --
23. Touch IC: CST916E
24. Connecting type: plugging type
25. Input voltage: 3.3V
26. Life time: 30000h
27. Operating temperature range: -10℃～+60℃
28. Storage temperature range: -20℃～+70℃
29. Compliant: RoHS
30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
