| Brand Name: | WANSHUJIE |
| Model Number: | SJ014LQRWXOSN001-C001B |
| MOQ: | 100pcs |
| Price: | $3/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union, |

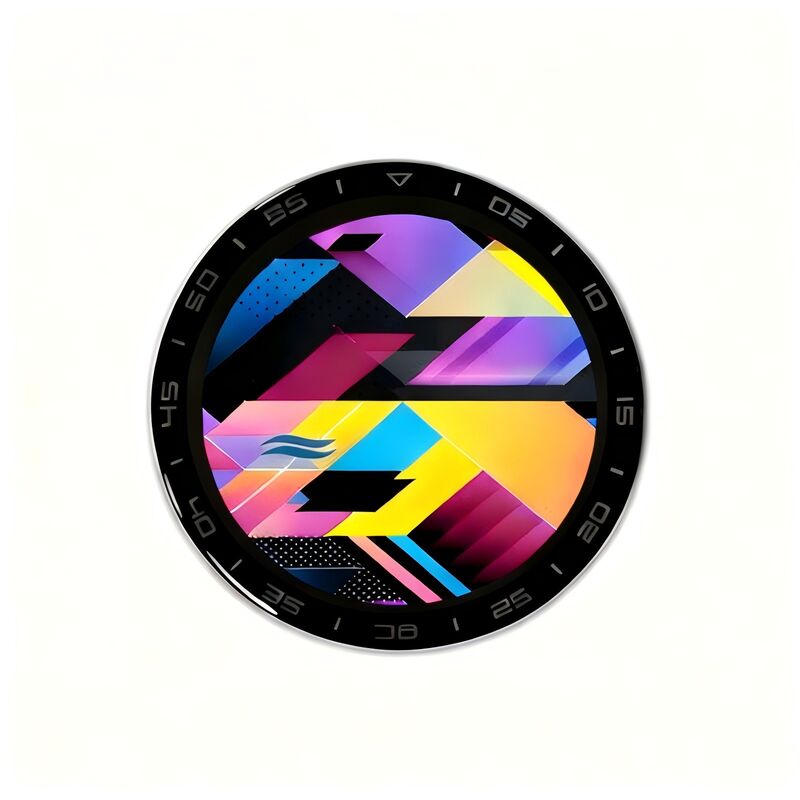

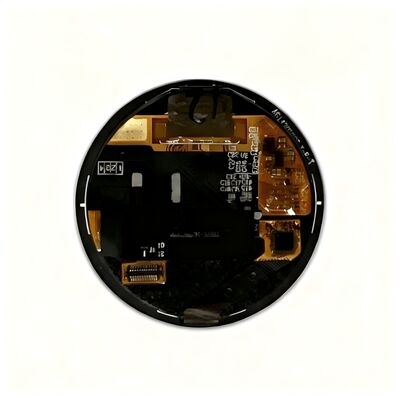

1. Product name: 1.4 inch 466x466 High Resolution Round AMOLED with Capacitive Touch Display LTPS
2. Part No.: SJ014LQRWXOSN001-C001B
3. Size.: 1.4 inch
4. With touch panel or not: Yes
5. Touch type: Capacitive Touch
6. Display type: AMOLED
7. Display colors: --
8. Color gamut: --
9. Response time: --
10. Resolution (pixels): 466x466
11. Pixel pitch: --
12. Viewing direction: Free V.A
13. Driver IC: CO5300
14. Overall size: 42.80*42.80*3.47mm
15. Viewing area: 36.75*36.75mm
16. Active area: 36.50*36.50mm
17. Luminance: 700cd/m²
18. Contrast: --
19. Interface type: QSPI
20. Pin NO.: 24
21. Pin pitch: --
22. Touch interface: --
23. Touch IC: CST820
24. Connecting type: plugging type
25. Input voltage: 3.3V
26. Life time: 30000h
27. Operating temperature range: -20℃～+70℃
28. Storage temperature range: -30℃～+80℃
29. Compliant: RoHS
30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
