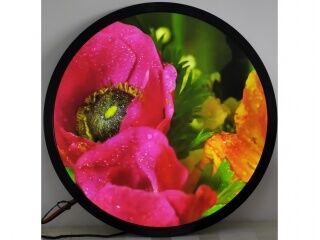

BOE 23.6" Flat Round IPS LCD Module 1280×1280 1500 nits WLED LVDS 30 pins

System Category: LCD/OLED/EPD Panel Modules > TFT-LCM LCD Module
Product Brand: BOE (Beijing Oriental Electronics)
Product Series: DV236FBM
Product Model: DV236FBM-N00
Key Description: BOE 23.6" Flat Circular IPS LCD Module 1280×1280 1500nits WLED LVDS 30pins
Product Type: Graphic
Product Tags: Color TFT LCD, High Brightness LCD, Sunlight Readable LCD, Circular LCD, IPS LCD
Application Products: Digital Signage, Outdoor High Brightness, Circular Display
Panel Type: a-Si TFT-LCD
Product Composition: LCD Module
Panel Size: 23.6"
Resolution: 1280×1280
Aspect Ratio: 1:1 (W:H)
Physical Shape: Flat Circular
Display Size: 599.424 (W) × 599.424 (H) mm (A.A)
Appearance Size: 657 (W) × 657 (H) mm
Maximum Thickness: 29.15 mm
LCD Family: IPS Hard Screen
Polarizer: Transmissive
Panel Brightness: 1500 (Typ.)
Transmittance Contrast: 1000:1 (Typ.)
Viewing Angle: 89/89/89/89 (Typ.) (CR≥10) (Left/Right/Top/Bottom)
View Direction: Full Viewing Angle
Display Colors: 16.7M
Backlight Type: WLED
Signal Type: LVDS
Signal Pins: 30 Pins
Touch Screen: No Touch
Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 60 °C
