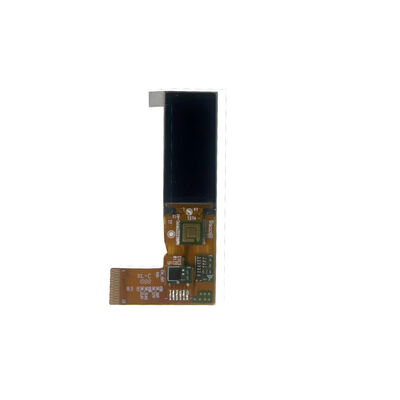

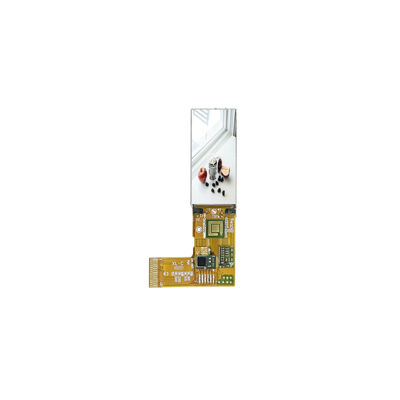

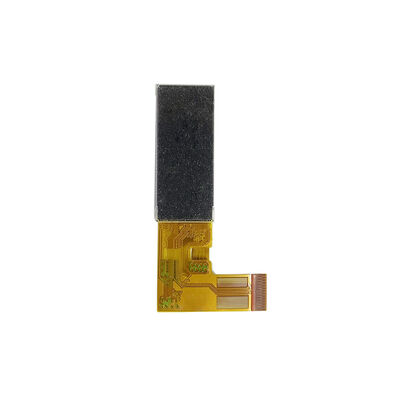

0.96 Inch AM-OLED Display Panel with 120x240 Resolution and 3-wire SPI/4-wire SPI Interface for Smart Wearables
0.96 Inch AM-OLED Display Panel with 120x240 Resolution and 3-wire SPI/4-wire SPI Interface for Smart Wearables
Brand Name
ODM
Product Model
SJ096LQR01-01C
Country Of Origin
China
MOQ
1
Unit Price
$4/pieces 1-5000 pieces
Payment Method
L/C,D/A,D/P,T/T,Western Union
Supply Capacity
100K/Month
Product Details
Highlight:
0.96 inch AM-OLED display panel
,OLED screen module for smart wearables
,120x240 resolution SPI interface display
Resolution:
120*240
Brightness:
450nits
Interface:
3-wire SPI/4-wire SPI
Product Description
Detailed Specifications And Features
0.96 Inch AM-OLED Display Panel with 120×240 Resolution and 3-wire SPI/4-wire SPI Interface for Smart Wearables
High-performance 0.96-inch AM-OLED display panel designed specifically for smart wearable devices, featuring exceptional image quality and versatile interface options.
Key Features
- AMOLED Display: True blacks, vivid colors, high contrast
- Ultra-Slim Design: Only 0.778 mm thickness
- High Contrast Ratio: 80,000:1 minimum for deep blacks
- Vibrant Colors: 16.7M colors (24-bit)
- Bright Performance: 450 cd/m² typical brightness
- Easy Integration: 3/4-wire SPI interface, 27-pin ZIF connector
- Wide Operating Temp: -20°C ~ 70°C for reliable use in diverse environments
- Compact Form Factor: 0.96" diagonal, small footprint for wearables & IoT
Applications
- Smart wearables (watches, trackers)
- IoT & smart home controls
- Portable consumer electronics
- Industrial small HMIs
- Medical portable devices
Customization Options
Available with cover glass using Corning Gorilla GG3 in various thicknesses. Surface treatments include AR, AF, and AG. Can be equipped with HDMI driver board for easy debugging and evaluation.
Technical Specifications
| Item | Specifications | Unit |
|---|---|---|
| Display Mode | AMOLED | - |
| Diagonal Size | 0.96 | Inch |
| Resolution | 120×240 | Dots |
| Active Area | 10.8×21.6 | mm |
| Outline Dimension | 12.8×27.35 | mm |
| Thickness | 0.778±0.1 | mm |
| Pixel Pitch | 0.08×0.08 | mm |
| Pixel Size | 0.08×0.08 | mm |
| Display Driver IC | RM690A0 | - |
| Touch Driver IC | ZTW523 | - |
| Display Color | 16.7M (24bit) | - |
| Gray Scale | 8 | bit |
| Brightness | 450 (Typ.) | cd/m² |
| Contrast Ratio | 80000:1 (Min.) | - |
| Interface | 3/4-wire SPI | - |
| IC Package | COF | - |
| Connection Type | ZIF | - |
| Weight | TBD±10% | g |
| Pins | 27 | - |
| Operating Temp. | -20~70 | ℃ |
| Storage Temp. | -30~80 | ℃ |
Why Choose Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens of various brands and offers one-stop solutions for touchscreen integration. With extensive experience and advantageous supply resources, we provide clients with fast and superior first-tier services.
