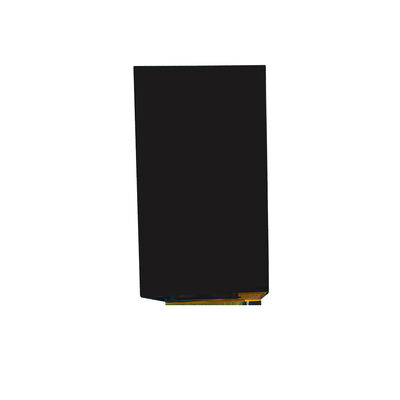

4.3 inch 540x960 QHD AMOLED Display Module with Wide Operating Temperature Range for Industrial and Automotive Applications

Brand Name:	ODM
MOQ:	1
Price:	27 US$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

AM OLED

Size:

4.3 Inch

Resolution:

540xRGBx960

Interface:

MIPI

Brightness:

250 Nits

Max Ratings:

-40°C To 85°C Operation, -55°C To 105°C Storage

Connector:

ZIF Type FH26-25S-0.3SHW

Product Description

4.3 inch 540×960 QHD 9:16 AMOLED Mobile Phone Handheld PDA Application

Core Product Features

Wide Operating Temperature Range: -40℃ to +85℃ operating, -55℃ to +105℃ storage, supporting reliable performance in extreme cold and high-temperature environments.
OLED Display Technology: Delivers deep blacks, high contrast, and vibrant 16.7M colors for superior visual clarity.
High Resolution: 540×RGB×960 resolution ensures sharp, detailed image output.
Ultra-Slim Form Factor: Only 1.065 mm thickness, ideal for compact and space-constrained designs.
Interface Support: MIPI interfaces.
Recommended Driver Solution: Optimized for RM69032 IC, ensuring stable display control.
Wide Color Gamut: 16.7M true colors enable rich, lifelike visual presentation.

Product Parameters

Item	Description	Specification
1	Screen Size	4.3 inch
2	Display Type	OLED
3	Resolution	540×RGB×960
4	Active Area	53.46×95.04 mm
5	Outline Dimension	57.26×103.87×0.77 mm
6	Color	16.7M
7	Interface	RGB / MIPI
8	Driver IC	RM69032 (Rec.)
9	Brightness	250 nits (Typ.)
10	Operating Temp.	-40 ~ 85 ℃
11	Storage Temp.	-55 ~ 105 ℃

Product Drawing

Typical Applications

Industrial control HMIs and embedded systems
Automotive and transportation displays (in-vehicle dashboards, industrial vehicles)
Outdoor and ruggedized devices (rugged equipment, field instruments)
Medical and portable diagnostic devices
Aerospace and defense applications requiring extreme temperature resilience
Smart home and IoT devices requiring reliable performance in variable environments

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.

Capacitive Touch Optional

Touchscreen integration solutions available upon request.

About Wan Shujie Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
