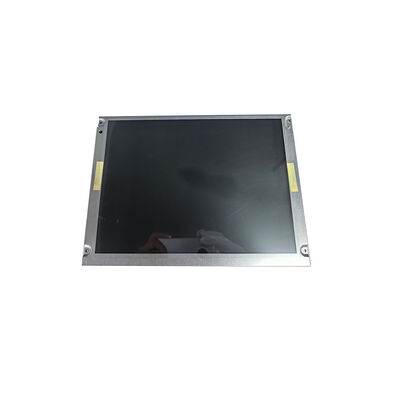

12.1 Inch TN TFT-LCD Panel SVGA 800x600 CMOS Outdoor Ultra High Brightness 1100 Nits Industrial LCM Display for Industrial

Brand Name:	NLT
Model Number:	NL8060BC31-36
MOQ:	1
Price:	$265/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

12.1"

Supplier Type:

Original Brand

Outline Dim.:

280(W)x209(H)x17(D) Mm

Viewing Angle:

70/70/45/55 (Typ.)(CR≥10)

Color Depth:

262K 40% NTSC

Resolution:

800(RGB)x600, SVGA 82PPI

Brightness:

1100 Cd/m² (Typ.)

Contrast Ratio:

600 : 1 (Typ.) (TM)

Backlight:

CCFL [4 Pcs] , W/O Driver

Signal Type:

CMOS (1 Ch, 6-bit) , 41 Pins Connector

Environment:

Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²)

Touchscreen:

Without

Warranty:

12 Months

Highlight:

lcd industrial tft display

panel tft lcd display

panel industrial tft display

Product Description

Products Description

Brand	NEC	Model P/N	NL8060BC31-36
Diagonal size	12.1"	Panel Type	a-Si TFT-LCD,LCM
Resolution	800(RGB)×600, SVGA 82PPI	Pixel Format	RGB Vertical Stripe
Active Area	246(W)×184.5(H) mm	Designed For	Industrial, Outdoor High brightness
Outline(mm)	280(W)×209(H)×17(D) mm	Treatment	Clear, Hard coating (3H)
Luminance	1100 cd/m2 (Typ.)	Contrast Ratio	600:1 (Typ.) (TM)
Wiewing Angle	70/70/45/55 (Typ.)(CR≥10)	Response	8/25 (Typ.)(Tr/Td)
Good View at	Symmetry	Work Mode	TN, Normally White, Transmissive
Color Depth	262K 40% NTSC	Backlight	CCFL [4 pcs] , W/O Driver
Mass	900g (Typ.)	Touchscreen	Without
Refresh Rate	60Hz	Voltage Supply	3.3/5.0V (Typ.)(VCC)
Signal Type	CMOS (1 ch, 6-bit) , 41 pins Connector	Max, Ratings	Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 80°C; Vibration Level: 2.0G (19.6 m/s²)

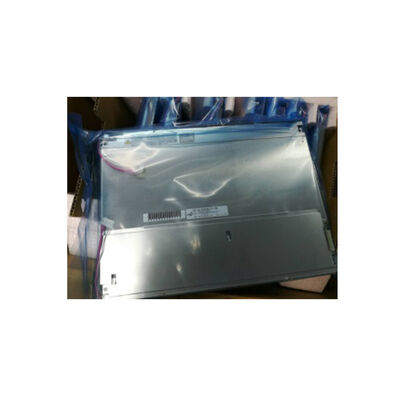

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
