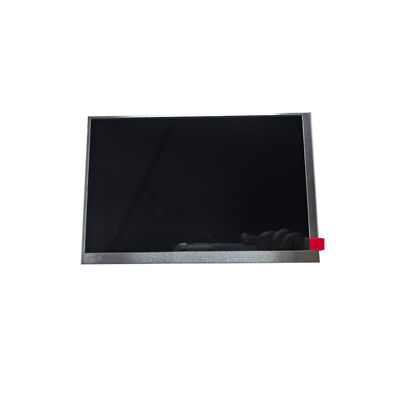

7Inch 1280*800WXGA TFT-LCD 400nits IPS LVDS Industrial Healthcare Medical LCM Display Module with 400cd/m2 Brightness

Brand Name:	Tianma
Price:	$39/pieces 1-99 pieces

Detail Information

Place of Origin:

Guangdong, China

Type:

TFT

Display Size:

7inch

Supplier Type:

In Stock

Panel Type:

A-Si TFT-LCD Panel

Resolution:

1280(RGB)x800, WXGA 217PPI

Module Outsize:

161*107*4.95 Mm

Viewing Angle:

88/88/88/88 (Typ.)(CR 10)

Brightness:

400cd/m2

Interface:

LVDS (1 Ch, 8-bit) , 40 Pins FPC

Application:

Industrial VOIP Healthcare

Environment:

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

MPQ:

72pcs

Warranty:

12months

Highlight:

Product Description

Products Description

Panel Model	TM070JVHG33-01	Panel Brand	Tianma
Size (inch )	7inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800 (WXGA) 217PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	161(W)×107(H) ×4.95(D) mm	Display Mode	SFT, Normally Black, Transmissive
LCD Active area(mm)	149.7693.6 (HV)	Response Time	35 (Typ.)(Tr+Td) ms
Display Colors	16.7M 50% NTSC	Light Source	3S7P WLED , 30K hours , Without Driver
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	400 cd/m² (Typ.)	Power Supply	3.3/10.4/16/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Contrast Ratio	800:1 (Typ.) (TM)	Used for	VOIP Phone, Industrial, Healthcare
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Enviroment	Operating Temp.: -20 ~ 70 °C
LCM Interface Type	LVDS (1 ch, 8-bit) , 40 pins FPC	FPC connector	Pitch 0.5mm
