7.0" 1280*800 WXGA 217PPI a-Si TFT-LCD LCM LVDS 40 pins FPC Signal Interface 3S7P WLED Lamp Display Module for Displays

7.0" 1280*800 WXGA 217PPI a-Si TFT-LCD LCM LVDS 40 pins FPC Signal Interface 3S7P WLED Lamp Display Module for Displays

Brand Name:	TIANMA
Price:	$38/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

TFT

Display Size:

7.0"

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)x800, WXGA 217PPI

Outline Size:

161(W)x107(H)x4.95(D) Mm

Display Colors:

16.7M 50% NTSC

Display Mode:

SFT, Normally Black, Transmissive

Viewing Angle:

88/88/88/88 (Typ.)(CR≥10)

Brightness:

400 Cd/m² (Typ.)

Lamp Type:

3S7P WLED , 30K Hours , Without Driver

Signal Interface:

LVDS (1 Ch, 8-bit) , 40 Pins FPC

Environment:

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Highlight:

lcd industrial tft display

lcm tft lcd display

lcm industrial tft display

Product Description

Products Description

Brand	TIANMA	Model P/N	TM070JDHG30-00
Diagonal Size	7.0"	Panel Type	a-Si TFT-LCD,LCM
Resolution	1280(RGB)x800,WXGA 217PPI	Pixel Format	RGB Vertical stripe
Active Area	149.76(W)x93.6(H) mm	Bezel Opening	152.76(W)x96.6(H) mm
Outline Size	161(W)x107(H) x4.95(D) mm	Surface	Hard coating (3H)
Brightness	400 cd/mz (Typ.)	Contrast Ratio	800:1(Typ.)(TM)
Viewing Angle	88/88/88/88(Typ(CR210)	Display Mode	SFT, Normally Black, Transmissive
Best View on	Symmetry	Response Time	35 (Typ.)(Tr+Td)
Display Colors	16.7M 50% NTSC	Lamp Type	3S7P WLED , 30K hours , Without Driver
Frequency	60Hz	Touch Screen	Without
Panel Weight	120g (Typ)	Input Voltage	3.3/10.4/16/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Signal Interface	LvDs (1 ch, 8-bit) , 40 pins FPC	Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

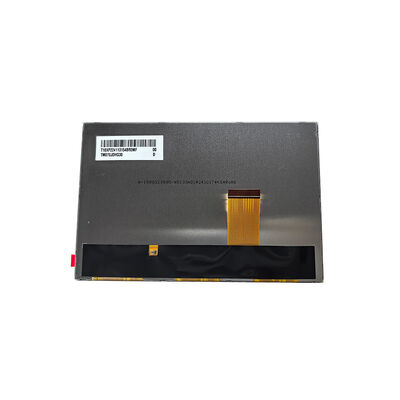

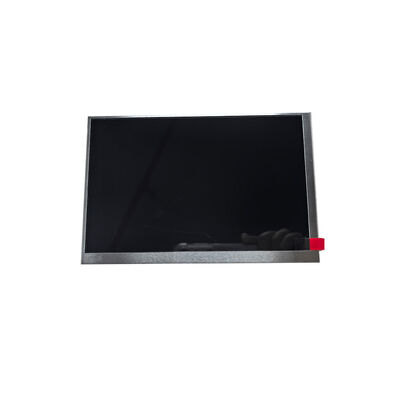

Details Images

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
