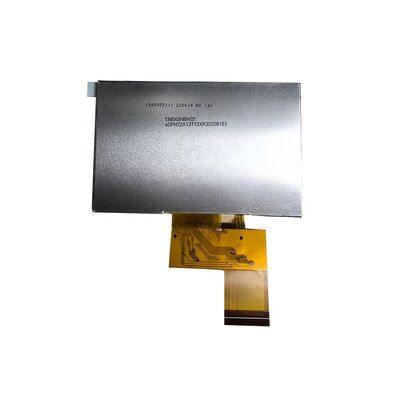

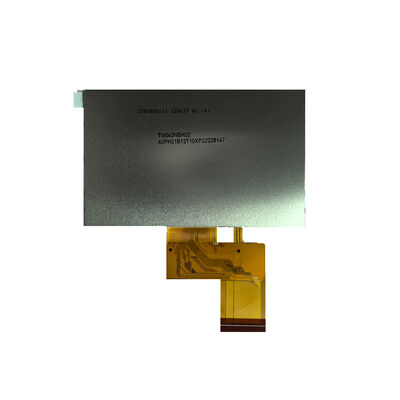

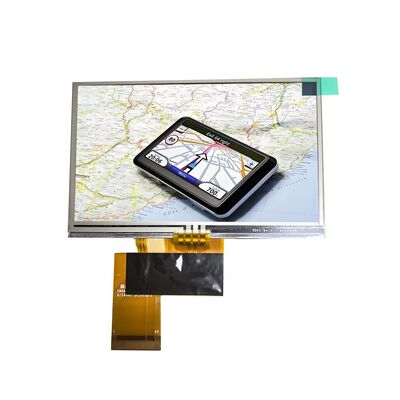

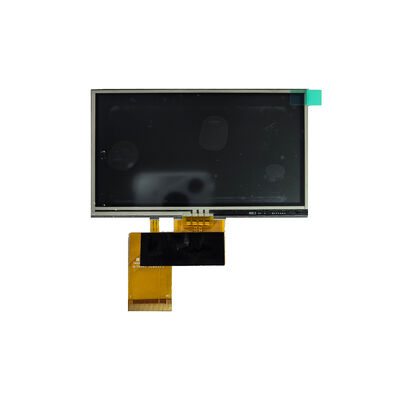

TM043NBH02-40 Tianma 4.3inch TFT Thin Film Transistor LCD Display Module 480x272 WQVGA Custom

Name: TM043NBH02-40 Tianma 4.3inch TFT Thin Film Transistor LCD Display Module 480x272 WQVGA Custom
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: TM043NBH02-40
Price: 8.00 USD
Availability: InStock

Brand Name:	TIANMA
Model Number:	TM043NBH02-40
MOQ:	1
Price:	$16/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

TM043NBH02-40_V2.3.pdf

Type:

TFT

Display Size:

4.3inch

Supplier Type:

Original Brand

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480(RGB)x272, WQVGA 128PPI

Module Outsize(mm):

105.5(W)x67.2(H)x4.4(D) Mm

Viewing Angle:

70/70/70/50 (Typ.)(CR≥10)

Brightness:

280cd/m2

Interface:

Parallel RGB (1 Ch, 8-bit) 40 Pins FPC

Touch Panel:

4-wire Resistive Touch

Application:

Industrial Equipment Portable Navigation PMP MP4

Signal Type:

Parallel RGB (1 Ch, 8-bit) , 40 Pins FPC

Voltage Supply:

3.3V (Typ.)

Environment:

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Highlight:

4.3inch thin film transistor lcd

WQVGA thin film transistor lcd

custom tft display 480x272

Product Description

4.3" TFT-LCD Display Module

High-performance 4.3-inch TFT-LCD display module with 480×272 WQVGA resolution and parallel RGB interface, designed for industrial device, handheld navigation and portable media applications.

Product Overview

The TM043NBH02-40 is a 4.3-inch diagonal TFT-LCD display panel developed by Tianma. Mass production for this model starts in Q3, 2015.

This industrial-grade display module delivers reliable visual performance with integrated 4-wire resistive touch functionality.

Key Features

WQVGA resolution (480×272) with 128 PPI for clear display quality
Parallel RGB interface with 40-pin FPC connector for reliable data transmission
Integrated 4-wire resistive touch screen
16.7 million color depth with 50% NTSC color gamut
280 cd/m² brightness for excellent visibility
Wide operating temperature range (-20°C to 70°C)

Technical Specifications

Panel Model	TM043NBH02-40
Panel Brand	Tianma
Size	4.3 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×272, WQVGA 128PPI
Module Dimensions	105.5 × 67.2 × 4.4 mm (H×V×D)
Active Area	95.04 × 53.856 mm
Display Mode	TN, Normally White, Transmissive
Response Time	20 ms (Typ.)
Viewing Angle	70/70/70/50 (Typ.)(CR≥10)
Brightness	280 cd/m² (Typ.)
Contrast Ratio	450:1 (Typ.)
Interface Type	Parallel RGB (1 ch, 8-bit), 40 pins FPC
Power Supply	3.3V (Typ.)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Applications

This display module is specifically designed for industrial equipment, portable navigation devices, PMP (Portable Media Players), MP4 players, and various industrial monitoring applications.

Customization Options

Available with optional cover glass using various materials and thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with driver boards for simplified customer debugging and evaluation.

About Wan Display

Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
