| Brand Name: | ODM |
| Model Number: | SJ0888IPW1-01C |
| MOQ: | 1 |
| Price: | $24/pieces 1-99 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

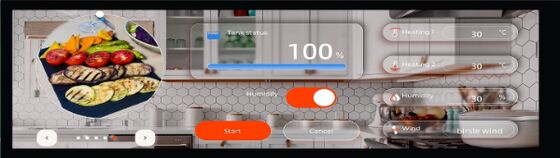

This is a 8.88-inch, high-brightness (1200 cd/m²) wide-format IPS TFT-LCD panel with 480x1920 resolution, 800:1 contrast ratio, and antiglare coating, designed for digital signage, industrial displays, and public information terminals,Auto rearview mirror.
| Category | Item | Specification |
|---|---|---|
| Basic Information | Brand | ODM |
| Model | SJ0888IPW1-01C | |
| Diagonal Size | 8.88 inch | |
| Panel Type | a-Si TFT-LCD, LCM | |
| Display Parameters | Resolution | 480(RGB)×1920 |
| Pixel Format | RGB Vertical Stripe | |
| Active Area | 54.72(H)x 218.88(V) | |
| Physical Size | 64.3(W)×235.3(H)×4.8(D) | |
| Surface Coating | Antiglare (Haze 25%) | |
| Luminance | 1200 cd/m² (Typ.) | |
| Contrast Ratio | 800:1 (Typ.) (TM) | |
| View Direction | Symmetry | |
| Response Time | 30 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | |
| Support Color | 16.7M, 50% NTSC | |
| Frame Rate | 60Hz | |
| Backlight & Touch | Light Source | WLED, Without Driver |
| Touch Panel | Without | |
| Electrical Interface | Interface Type | MIPI |
| Power Supply | 3.3V (Typ.) | |
| Connector | FPC Pitch 0.5mm, 40 Pins | |
| Environment | Operating Temperature | -20 ~ 70 ℃ |
| Storage Temperature | -30 ~ 80 ℃ |
Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
Capacitive Touch Options
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. We focus on differentiated products and provide personalized customization services. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services to our clients.
