Product Details
Highlight:
28inch bar lcd screen
,WLED bar lcd screen
,DV280FBM-NB1
Panel Type:
A-Si TFT-LCD, LCM
Display Size:
28inch
Supplier Type:
Original Brand
Resolution:
1920(RGB)x360, SVGA 82PPI
Module Outsize(Mm):
732(H)x165(V) X17.3(D) Mm
Viewing Angle:
89/89/89/89 (Typ.)(CR 10)
Brightness:
700cd/m2
Contrast Ratio:
1200:1 (Typ.) (TM)
Interface:
LVDS (1 Ch, 8-bit) , 51 Pins Connector
Lamp Type:
WLED , 50K Hours , Without Driver
Touch Screen:
Without
Application:
Industrial, Outdoor High Brightness, Stretched Bar Lcd
MPQ:
4pcs
Warranty:
12 Months
Product Description
Detailed Specifications And Features
DV280FBM-NB1 BOE 28inch 1920*360 Resolution TFT-LCD Screen with 700cd/m2 Brightness for High Brightness Digital Signage
High-brightness 28-inch TFT-LCD screen with 1920×360 resolution, designed for stretched bar digital signage applications requiring superior visibility and reliability.
Product Overview

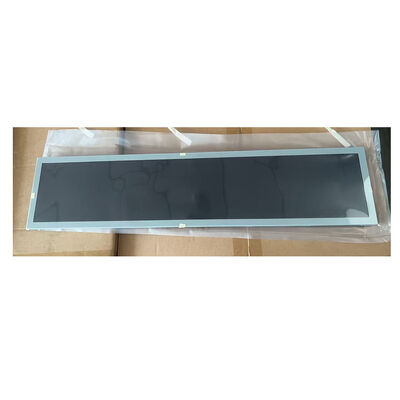

The DV280FBM-NB1 is a 28-inch stretched bar TFT-LCD display module from BOE, featuring an ultra-wide aspect ratio and high brightness for industrial and outdoor digital signage applications.
Key Features
- 1920×360 resolution stretched bar display format
- 700 cd/m² high brightness for outdoor visibility
- ADS technology with 89/89/89/89 viewing angles
- 16.7M color support with 72% NTSC color gamut
- LVDS interface with 51-pin connector
- 1200:1 contrast ratio for superior image quality
- WLED backlight with 50,000 hours lifespan
Technical Specifications
| Panel Model | DV280FBM-NB1 | Panel Brand | BOE |
|---|---|---|---|
| Size | 28 inch | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920×360 | Pixel Format | RGB Vertical Stripe |
| Module Dimensions | 732 × 165 × 17.3 mm (H×V×D) | Display Mode | ADS, Normally Black, Transmissive |
| Active Area | 699.84 × 131.22 mm (W×H) | Response Time | 8 ms (Typ.) |
| Brightness | 700 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.) | Interface | LVDS (1 ch, 8-bit) |
| Power Supply | 12V (Typ.) | Backlight | WLED, 50K hours |
| Operating Temperature | -0°C to 50°C | Storage Temperature | -20°C to 60°C |
| Frame Rate | 60Hz | FPC Connector | UJU, IS050-C51B-C39-S, Pitch 0.5mm |
Application Areas
Ideal for industrial displays, outdoor high-brightness applications, stretched bar displays, and digital signage solutions requiring reliable performance in various environmental conditions.
