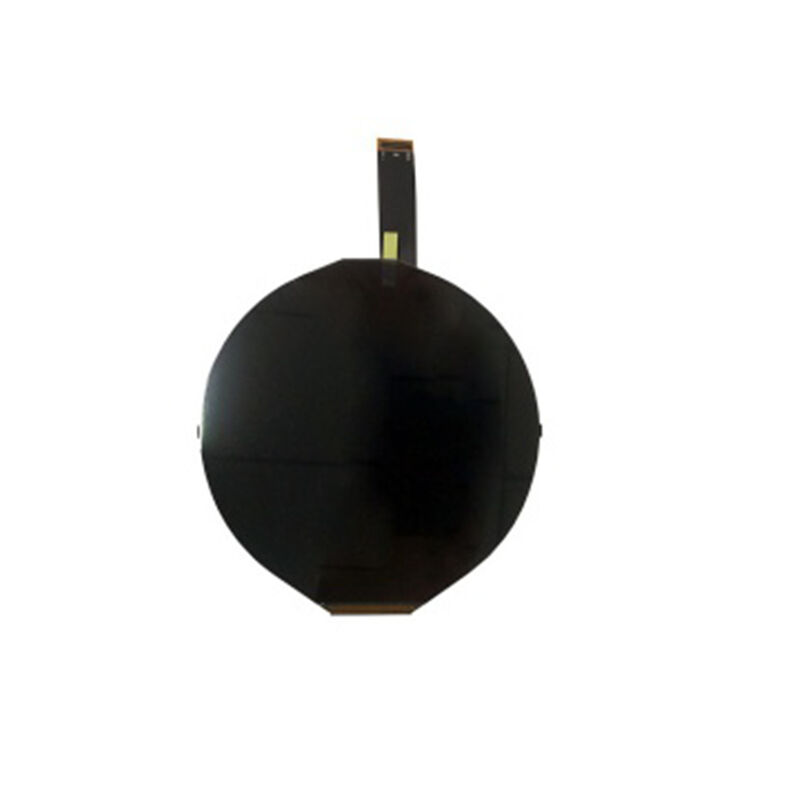

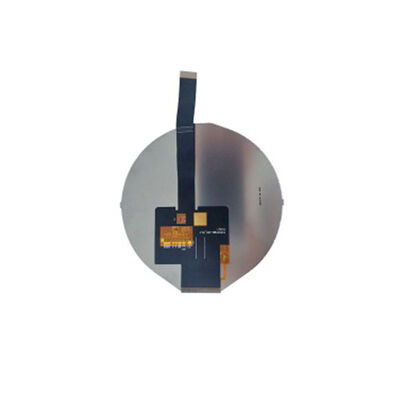

BOE MIPI 5 Inch Round LCD Display Module 1080x1080 For Home Appliance

Name: BOE MIPI 5 Inch Round LCD Display Module 1080x1080 For Home Appliance
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: ZS050YMM-J40
Price: 29.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	ZS050YMM-J40
MOQ:	1
Price:	$58/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

5.0inch

Supplier Type:

Original Brand

Resolution:

1080(RGB)×1080 215PPI

Module Outsize(mm):

136.531(H)×132.208(V) ×3.48(D) Mm

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Support Color:

16.7M 70% NTSC

Brightness:

350cd/m2

Contrast Ratio:

1300:1 (Typ.) (TM)

Lamp Type:

WLED , 30K Hours , W/O Driver

Interface:

MIPI (4 Data Lanes) , 50 Pins Connector

Power Supply:

1.8/5.0/-5.0V (Typ.)(IOVCC/VSP/VSN)

Touch Screen:

Without

Application:

Round Display,Home Appliance,Instrument & Meters

Warranty:

12 Months

Highlight:

MIPI 5 inch round lcd display

BOE 5 inch round lcd display

1080x1080 round display module

Product Description

BOE Original 5.0 Inch Round LCD Display Module with 1080x1080 Resolution and MIPI Interface for Home Appliance

ZS050YMM-J40 - High-performance 5.0-inch TFT-LCD display module with 1080×1080 resolution, designed for demanding industrial applications requiring reliable visual performance in various environmental conditions. Mass production for this model started in Q4 2019.

Key Features

1080×1080 resolution with 215 PPI for exceptional clarity
350 cd/m² brightness for excellent visibility
ADS technology with 80/80/80/80 viewing angles
MIPI interface with 50-pin connector for reliable data transmission
1300:1 contrast ratio for superior image quality
WLED backlight with 30,000 hours lifespan
16.7M color support with 70% NTSC color gamut
Wide operating temperature range: -30°C to 75°C
Round display format for specialized applications

Technical Specifications

Panel Model	ZS050YMM-J40	Panel Brand	BOE
Size	5.0 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1080(RGB)×1080, 215PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	136.531(W)×132.208(H)×3.48(D) mm	Display Mode	ADS, Normally Black, Transmissive
Active Area	127.008(W)×127.008(H) mm	Response Time	40ms (Typ.)(Tr+Td)
Display Colors	16.7M, 70% NTSC	Light Source	WLED, 30K hours, With LED Driver
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	350 cd/m² (Typ.)	Power Supply	1.8/5.0/-5.0V (Typ.)(IOVCC/VSP/VSN)
Contrast Ratio	1300:1 (Typ.) (TM)	Frame Rate	60Hz
Interface Type	MIPI (4 data lanes), 50 pins Connector	FPC Connector	HRS,DF40C-50DP-0.4V, Pitch 0.4mm
Storage Temperature	-20°C to 60°C	Operating Temperature	-30°C to 75°C

Applications

Home Appliance, Instrument & Meters, Round Display

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
