Quality MIPI Interface Tianma TM089CFSP01 8.9 Inch WQUXGA TFT LCD Cell 3840x2400 Resolution FOB Screen for 3D Printer factory

MIPI Interface Tianma TM089CFSP01 8.9 Inch WQUXGA TFT LCD Cell 3840x2400 Resolution FOB Screen for 3D Printer

Brand Name

Tianma

Country Of Origin

China

Unit Price

$112/pieces 1-99 pieces

Product Details

Highlight:

tianma tft lcd display

tianma industrial tft display

lcd industrial tft display

Type: TFT

Display Size: 8.9inch

Supplier Type: Original Brand

Panel Type: A-Si TFT-LCD, LCM

Resolution: 3840x2400, WQUXGA 508PPI

Module Outsize(Mm): 202 X 133 X 1.24(HxVxD)

Viewing Angle: 85/85/85/85 (Typ.)(CR 10)

Brightness: 0cd/m2

Interface: MIPI

Touch Panel: Withtout

Application: 3D Printer

MPQ: 36pcs

Warranty: 12 Months

Product Description

Detailed Specifications And Features

Products Description

Panel Model	TM089CFSP01	Panel Brand	Tianma
Size (inch )	8.9inch	Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	3840×2400, WQUXGA 508PPI	Pixel Format	Rectangle
Module Outsize(mm)	202(W)×133(H) ×1.24(D) mm	Display Mode	SFT, Normally Black, Transmissive
LCD Active area(mm)	192(W)×120(H) mm	Response Time	25 (Typ.)(Tr+Td)
Display Colors	262K/16.7M 36% NTSC	Light Source	No B/L
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	0 cd/m² (Typ.)	Power Supply	1.8/3.3V (Typ.)(VDDI/VDD)
Contrast Ratio	600:1 (Typ.) (TM)	Used for	3D Printer
Frame Ratio	60Hz	Enviroment	Storage Temp.: -20 ~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -10 ~ 70°C
Driver IC	OG Built-in FT7250*2	Transmissivity	5.4% (Typ.)(with Polarizer)
LCM Interface Type	MIPI (4 data lanes) , 50 pins Connector	FPC connector	HRS, BM20B(0.8)-50DS-0.4V(51), Pitch 0.4mm

Details Images

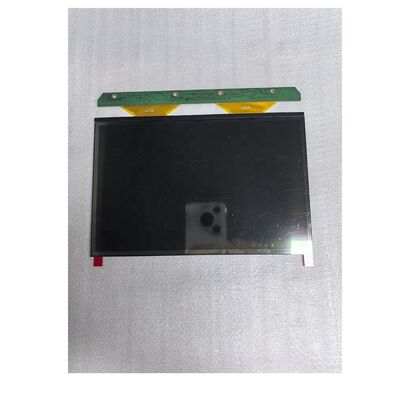

MIPI Interface Tianma TM089CFSP01 8.9 Inch WQUXGA TFT LCD Cell 3840x2400 Resolution FOB Screen for 3D Printer
