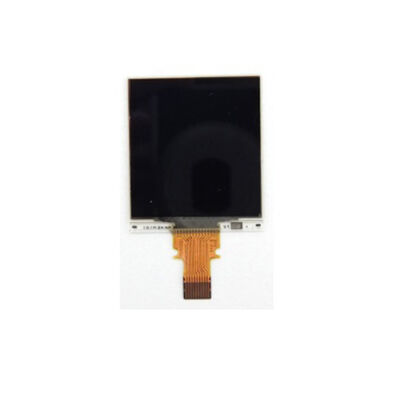

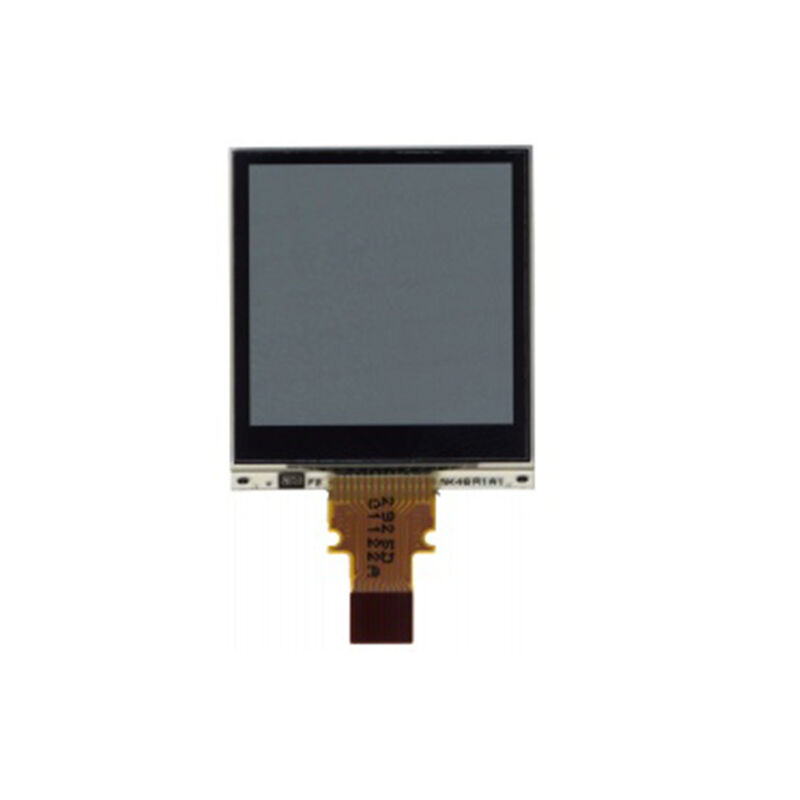

Industrial 1.28inch CG Silicon Monochrome TFT LCD Display 128x128 Sharp LS013B7DH03

Name: Industrial 1.28inch CG Silicon Monochrome TFT LCD Display 128x128 Sharp LS013B7DH03
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: LS013B7DH03
Price: 5.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LS013B7DH03
MOQ:	1
Price:	$9/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Display Size:

1.28inch

Panel Type:

CG-Silicon, LCM

Resolution:

128x128 141PPI

Module Outsize(mm):

26.6(W)x30.3(H) X0.86(D) Mm

Viewing Angle:

60/60/60/60 (Typ.)(CR≥2)

Contrast Ratio:

18:1 (Typ.) (RF)

Display Mode:

TN, Normally White, Reflective

Interface:

4-wire SPI , 10 Pins FPC

Touch Screen:

Without

Application:

Industrial, Wearable, Electronic Price Tag,Square Display

Light Source:

No Back Light

Environment:

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

MPQ:

2240pcs

Warranty:

12 Months

Highlight:

1.28inch monochrome tft lcd

128x128 monochrome tft lcd

sharp ls013b7dh03

Product Description

LS013B7DH03 Sharp1.28inch TFT LCD Display with 128x128 Resolution and CG-Silicon Technology for Industrial and Wearable Applications

1.28-inch CG-Silicon monochrome reflective LCD display module with 128×128 resolution, designed for industrial and wearable applications requiring reliable performance across wide temperature ranges.

Key Features

128×128 resolution with 141 PPI for sharp display clarity
CG-Silicon technology with reflective display
Monochrome display with 18:1 contrast ratio
4-wire SPI interface with 10-pin FPC connector
No backlight required - reflective technology
Compact module size: 26.6×30.3×0.86 mm
Operating temperature range: -20°C to 70°C

Technical Specifications

Panel Model	LS013B7DH03
Panel Brand	Sharp
Size	1.28 inch
Panel Type	CG-Silicon, LCM
Resolution	128×128 (141 PPI)
Pixel Format	RGB Vertical Stripe
Module Dimensions	26.6(H)×30.3(V)×0.86(D) mm
Display Mode	TN, Normally White, Reflective
Active Area	23.04×23.04 mm
Response Time	10/20 ms (Typ.)(Tr/Td)
Display Colors	Monochrome
Light Source	No Backlight
Viewing Angle	60/60/60/60 (Typ.)(CR≥2)
Touch Screen	Without
Power Supply	3.3/3.3V (Typ.)(VDDA/VDD)
Contrast Ratio	18:1 (Typ.) (RF)
Frame Rate	60Hz
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Interface Type	4-wire SPI, 10 pins FPC
FPC Connector	Pitch 0.5mm

Applications

Electronic Price Tags
Industrial Control Displays
Wearable Devices and Tags
Square Display Applications

Customization Options

The LS013B7DH03 can be customized with cover glass and capacitive touch elements to enhance usability in various applications. This display can be equipped with an HDMI driver board for easier debugging and evaluation, as well as for direct integration into your products.
