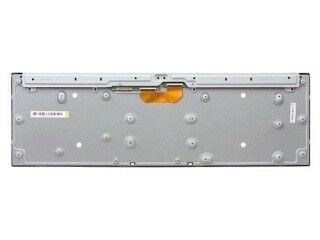

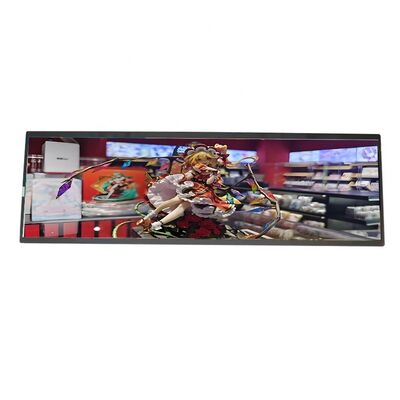

29 Inch Industrial Stretched Bar Monitor LCD TFT Display 1920x540 700cd/M²

Name: 29 Inch Industrial Stretched Bar Monitor LCD TFT Display 1920x540 700cd/M²
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: DV290FBM-N10
Price: 50.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV290FBM-N10
MOQ:	1
Price:	$173/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

DV290FBM-N10_ Product Spec.pdf

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

29inch

Supplier Type:

Original Brand

Resolution:

1920(RGB)x540 69PPI

Module Outsize(mm):

720.8x 226.25x21.6 (HxVxD)

Viewing Angle:

89/89/89/89 (Typ.)(CR 10)

Brightness:

700cd/m2

Support Color:

16.7M 72% NTSC

Contrast Ratio:

1200:1 (Typ.) (TM)

Light Source:

WLED , 50K Hours , W/O Driver

Interface:

LVDS (2 Ch, 8-bit) , 51 Pins Connector

Touch Screen:

Without

Application:

Industrial, Stretched Bar Lced, Digital Signage

MPQ:

4pcs

Warranty:

12 Months

Packaging Details:

4pcs/Box

Highlight:

29 Inch stretched bar monitor

1920x540 stretched bar monitor

700cd/M² stretched bar lcd

Product Description

DV290FBM-N10 BOE 29-Inch Native Bar LCD Advertising Display

29-inch diagonal stretched bar LCD module with 1920*540 resolution and 700 nits brightness, designed for high-visibility digital signage applications. Stretched bar displays feature an extra-long, narrow format with extreme aspect ratio, ideal for shelf edge labels, public transportation information systems, equipment status indication, and digital advertising strips.

Key Features

700 cd/m² high brightness for outdoor and bright environment visibility
1920*540 stretched bar format with 69 PPI density
ADS technology with 89/89/89/89 viewing angles
1200:1 contrast ratio for superior image quality
16.7 million colors with 72% NTSC color gamut
WLED backlight with 50,000 hours lifespan
LVDS interface with 2 channels, 8-bit

Technical Specifications

Panel Model	DV290FBM-N10	Panel Brand	BOE
Size	29.0" (Native bar)	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*540 69PPI	Pixel Format	RGB Vertical Stripe
Module Dimensions	720.8(W)226.25(H)21.6(D) mm	Display Mode	HADS, Normally Black, Transmissive
Active Area	705.6(W)*198.45(H) mm	Response Time	15ms (Typ.)(G to G)
Display Colors	16.7M 72% NTSC	Light Source	WLED, 50K hours, Without Driver
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	700 cd/m² (Typ.)	Power Supply	12.0V (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)	Application	Industrial, Outdoor high brightness, Stretched bar display
Frame Rate	60Hz	Environment	Storage: -20~60°C, Operating: 0~50°C
Interface Type	LVDS (2 ch, 8-bit), 51 pins	FPC Connector	LS Mtron, GT05S-51S-H38, Pitch 0.5mm

Applications

Digital signage and information displays
Outdoor high brightness advertising
Native bar LCD installations
Industrial monitoring and control systems
Shelf edge labels
Public transportation information systems
Equipment status indication
Digital advertising strips

Customization Options

Available with optional cover glass using Corning Gorilla GG3 or Asahi Nitrate materials in various thicknesses. Surface treatments include AR (Anti-Reflective), AF (Anti-Fingerprint), and AG (Anti-Glare). Can be equipped with HDMI driver boards for simplified customer debugging and evaluation.
