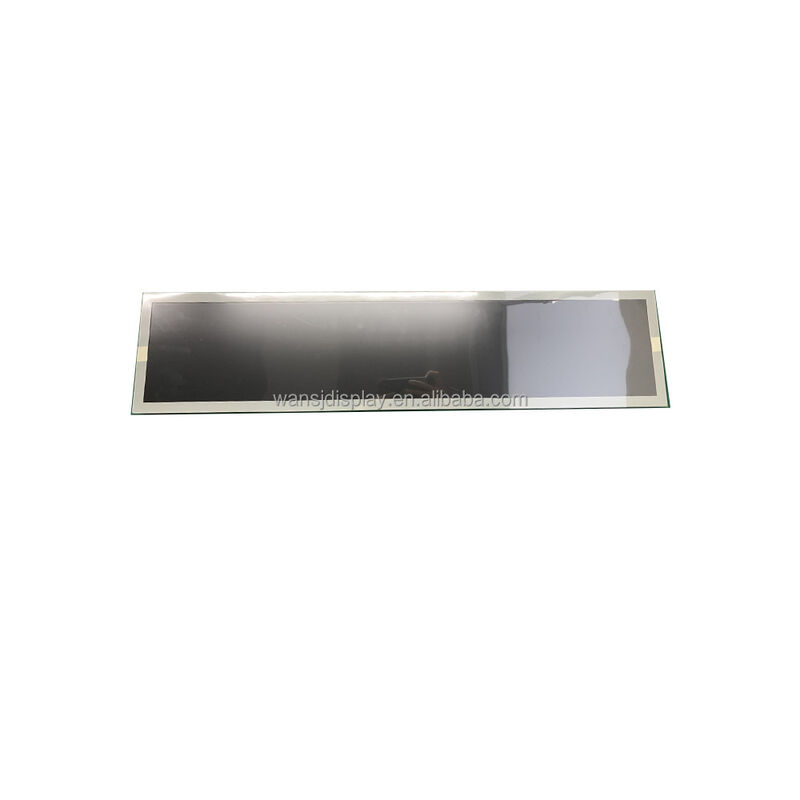

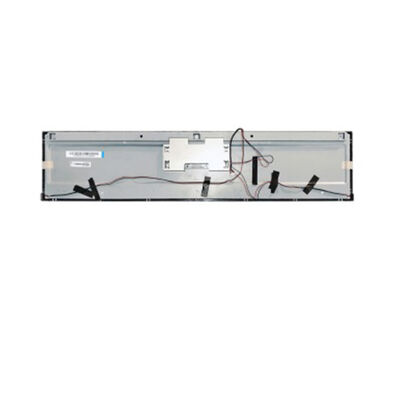

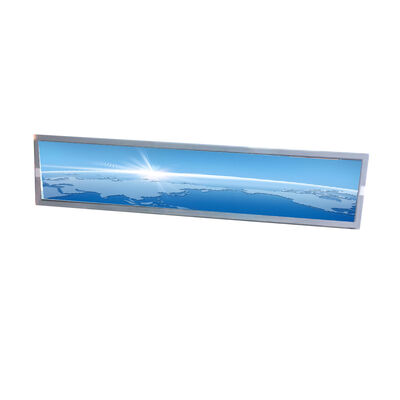

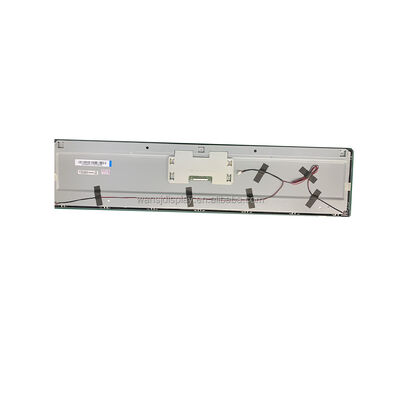

28inch WLED TFT Bar LCD Screen High Brightness DV280FBM-NB1 BOE

Name: 28inch WLED TFT Bar LCD Screen High Brightness DV280FBM-NB1 BOE
Brand: Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
SKU: DV280FBM-NB1
Price: 50.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV280FBM-NB1
MOQ:	1
Price:	$160/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Type:

A-Si TFT-LCD, LCM

Display Size:

28inch

Supplier Type:

Original Brand

Resolution:

1920(RGB)x360, SVGA 82PPI

Module Outsize(mm):

732(H)x165(V) X17.3(D) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR 10)

Brightness:

700cd/m2

Contrast Ratio:

1200:1 (Typ.) (TM)

Interface:

LVDS (1 Ch, 8-bit) , 51 Pins Connector

Lamp Type:

WLED , 50K Hours , Without Driver

Touch Screen:

Without

Application:

Industrial, Outdoor High Brightness, Stretched Bar Lcd

MPQ:

4pcs

Warranty:

12 Months

Packaging Details:

4pcs/Box

Highlight:

28inch bar lcd screen

WLED bar lcd screen

DV280FBM-NB1

Product Description

DV280FBM-NB1 BOE 28inch 1920*360 Resolution TFT-LCD Screen with 700cd/m2 Brightness for High Brightness Digital Signage

High-brightness 28-inch TFT-LCD screen with 1920×360 resolution, designed for stretched bar digital signage applications requiring superior visibility and reliability.

Product Overview

The DV280FBM-NB1 is a 28-inch stretched bar TFT-LCD display module from BOE, featuring an ultra-wide aspect ratio and high brightness for industrial and outdoor digital signage applications.

Key Features

1920×360 resolution stretched bar display format
700 cd/m² high brightness for outdoor visibility
ADS technology with 89/89/89/89 viewing angles
16.7M color support with 72% NTSC color gamut
LVDS interface with 51-pin connector
1200:1 contrast ratio for superior image quality
WLED backlight with 50,000 hours lifespan

Technical Specifications

Panel Model	DV280FBM-NB1	Panel Brand	BOE
Size	28 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920×360	Pixel Format	RGB Vertical Stripe
Module Dimensions	732 × 165 × 17.3 mm (H×V×D)	Display Mode	ADS, Normally Black, Transmissive
Active Area	699.84 × 131.22 mm (W×H)	Response Time	8 ms (Typ.)
Brightness	700 cd/m² (Typ.)	Contrast Ratio	1200:1 (Typ.)
Viewing Angle	89/89/89/89 (Typ.)	Interface	LVDS (1 ch, 8-bit)
Power Supply	12V (Typ.)	Backlight	WLED, 50K hours
Operating Temperature	-0°C to 50°C	Storage Temperature	-20°C to 60°C
Frame Rate	60Hz	FPC Connector	UJU, IS050-C51B-C39-S, Pitch 0.5mm

Application Areas

Ideal for industrial displays, outdoor high-brightness applications, stretched bar displays, and digital signage solutions requiring reliable performance in various environmental conditions.
