Sharp 15-inch LQ150X1LG11 XGA 1024x768 High Brightness 600nits TFT-LCD Display Industrial Screen Module
Sharp 15-inch LQ150X1LG11 XGA 1024x768 High Brightness 600nits TFT-LCD Display Industrial Screen Module
Brand Name
Sharp
Product Model
LQ150X1LG11
Country Of Origin
China
MOQ
1
Unit Price
$330/pieces 1-99 pieces
Payment Method
L/C,D/A,D/P,T/T
Product Details
Highlight:
lcd industrial tft display
,sharp tft lcd display
,sharp industrial tft display
Type:
TFT
Display Size:
15inch
Supplier Type:
Original Brand
Panel Type:
A-Si TFT-LCD, LCM
Resolution:
1024(RGB)x768, XGA 85PPI
Module Outsize(Mm):
331.6(W)x254.7(H) X9.8(D) Mm
Viewing Angle:
80/80/65/80 (Typ.)(CR≥10)
Brightness:
600cd/m2
Interface:
LVDS (1 Ch, 6/8-bit) , 30 Pins Connector
Touch Panel:
Withtout
Application:
Industrial Equipment
MPQ:
10pcs
Warranty:
12 Months
Product Description
Detailed Specifications And Features

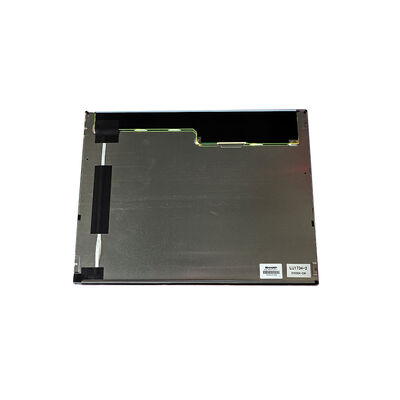

High Brightness 600nits TFT-LCD Display Sharp LQ150X1LG11 15 Inch Industrial Screen Module XGA 1024x768 LED TN LVDS
Sharp LQ150X1LG11 is a 15" XGA high-brightness a-Si TFT-LCD panel with 600cd/m², LVDS interface, matte anti-glare coating, wide temperature range and it is discontinued.
Key Features
- 15.0", XGA 1024*768, 4:3 aspect ratio
- Brightness: 600 cd/m² (Typ.), Contrast: 800:1 (Typ.)
- 1-ch LVDS 30pin, 6/8-bit, 60Hz refresh rate
- WLED backlight, 70K hrs lifetime, built-in LED driver
- Temperature: Operate -20~70℃, Storage -30~70℃
Technical Specifications
| Panel Model | LQ150X1LG11 | Panel Brand | Sharp |
|---|---|---|---|
| Size | 15 inch | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)*768, XGA 85PPI | Pixel Format | RGB Vertical Stripe |
| Module Outsize | 331.6(W)*254.7(H)*9.8(D) mm | Display Mode | TN, Normally White, Transmissive |
| LCD Active Area | 304.128(W)*228.096(H) mm | Response Time | 30 (Typ.)(Tr+Td) ms |
| Display Colors | 262K/16.2M 49% NTSC | Light Source | WLED, 70K hours, With LED Driver |
| Viewing Angle | 80/80/65/80 (Typ.)(CR≥10) | Touch Screen | Without |
| Brightness | 600 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) | Used for | Industrial |
| Frame Ratio | 60Hz | Environment | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 70°C |
| LCM Interface Type | LVDS (1 ch, 6/8-bit), 30 pins Connector | FPC Connector | HRS, DF14H-30P-1.25H(56), Pitch 1.25mm |
Applications
- Industrial HMI & control panels
- Kiosks & self-service terminals
- POS / fuel dispenser terminals
- Test & measurement instruments
- Medical & lab equipment
- Embedded industrial monitoring systems
Note: This product has been discontinued by the manufacturer.
